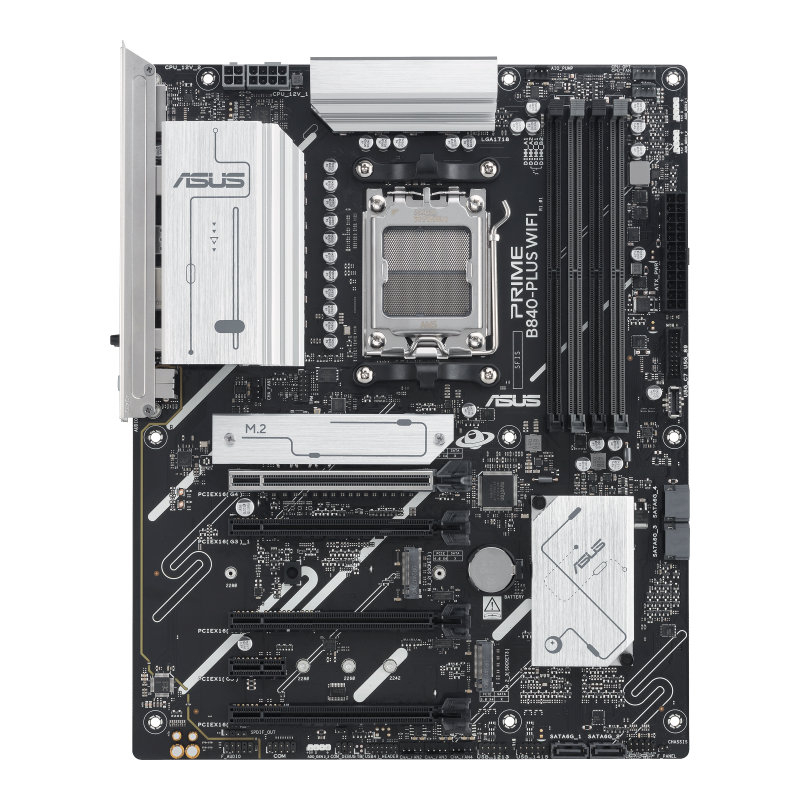

Placa de baza ASUS PRIME B840-PLUS WIFI, Socket AM5, DDR5,

Name: Placa de baza ASUS PRIME B840-PLUS WIFI, Socket AM5, DDR5, - Magazin Demo
SKU: PRIME B840-PLUS WIFI
Price: 1191.59 RON
Availability: OutOfStock

1.191,59 lei

Stoc epuizat

SKU: PRIME B840-PLUS WIFI Categorie: Placi de baza

Descriere

Placa de Baza ASUS PRIME B840 PLUS WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE 4.0 x16, 3x PCIE 3.0 x16 1x PCIE 3.0 x1, 3x M.2, 4x SATA 6GB/s, ATX

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Wi-FI	Yes
USB3	4-8
PCI-Ex1	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Processor manufacturer	AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
On-board graphics card	No
Supported storage drive types	HDD & SSD
Maximum internal memory	192 GB
Screws included	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11
Model Chipset	B840
Gaming	Nu
Format	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
mSATA ports quantity	0
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Number of storage drives supported	7
RAID levels	0, 1, 5, 10
Number of chassis fan connectors	4
TPM connector	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Number of M.2 (M) slots	3
2nd M.2 highest PCI Express generation	4.0
Antenna included	Yes
12V power connector	Yes
S/PDIF out connector	Yes
Number of COM connectors	1
WiFi-AP antenna jack	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Thunderbolt headers	1
Chassis intrusion connector	Yes
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
3rd M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
3rd M.2 highest PCI Express generation	3.0
PCI Express x16 (Gen 3.x) slots	3
MB-Format	ATX
RAM-Slots	4
MB-Socket	AM5
PCI-Ex16	5
Motherboard chipset	AMD B840
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Cables included	SATA
Package height	68 mm
Package depth	273 mm
Package width	353 mm
Product colour	Aluminium, Black
Package weight	1.26 kg
Width	30.5 mm
Depth	24.4 mm
Producator	ASUS
Garantie	36
