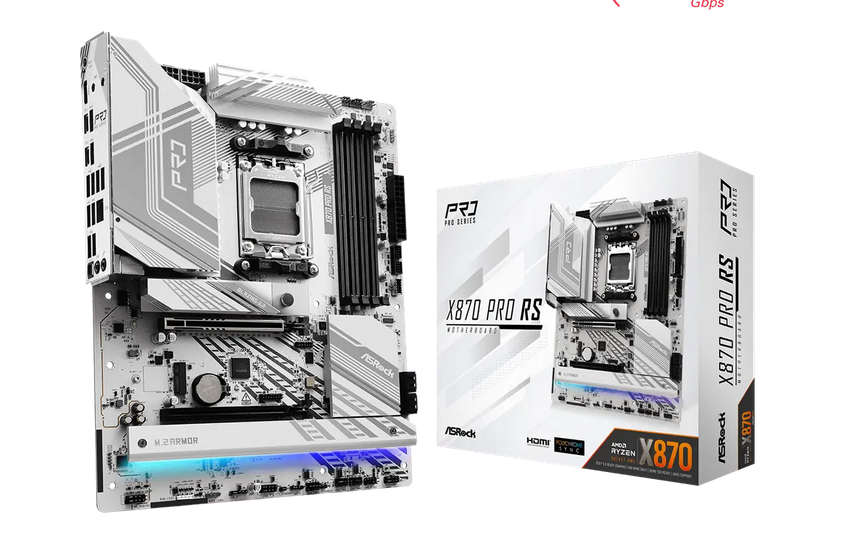

Placa de baza ASRock X870 PRO RS, Socket AM5, DDR5,

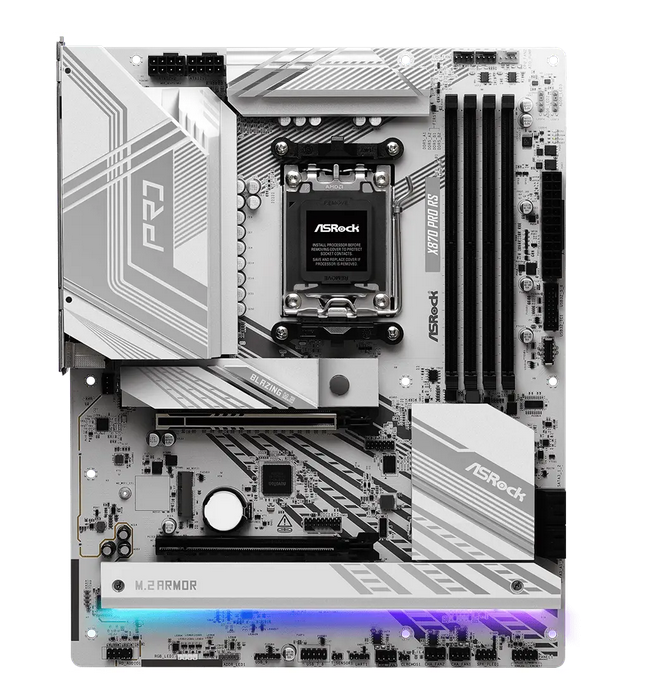

Placa de baza ASRock X870 PRO RS, Socket AM5, DDR5, - imagine 3

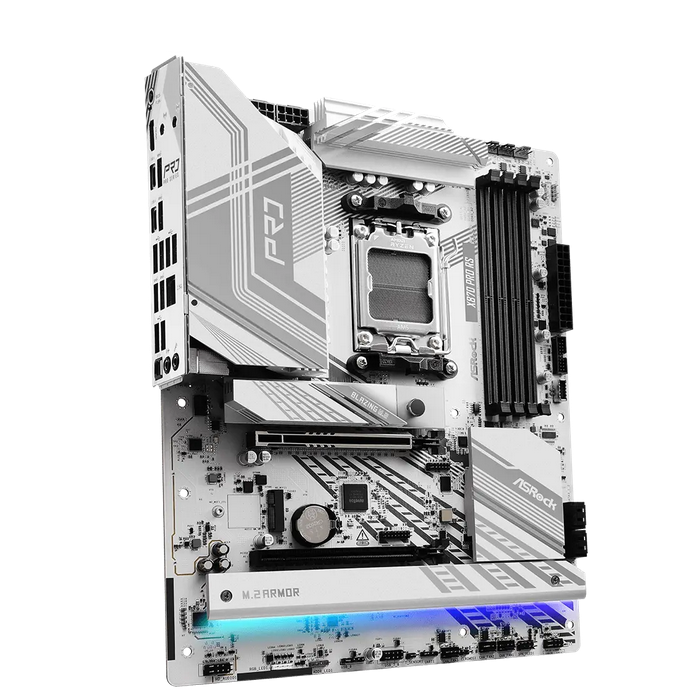

Placa de baza ASRock X870 PRO RS, Socket AM5, DDR5, - imagine 4
Placa de baza ASRock X870 PRO RS, Socket AM5, DDR5, - imagine 5

Placa de baza ASRock X870 PRO RS, Socket AM5, DDR5,

1.107,55 lei

Stoc epuizat

SKU: X870 PRO RS Categorie:

Descriere

Placa de Baza ASROCK X870 PRO RS AM5, 4x DDR5, 1x HDMI 2x USB4, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 4x SATA 6GB/s, ATX

Informații suplimentare

PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI
Wi-FI

No
USB3

4-8
Onboard-CPU

No
RAID support

Yes
Component for

PC
Memory channels

Dual-channel
Ethernet LAN

Yes
HDMI ports quantity

1
HDMI version

2.1
Processor manufacturer

AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
Audio output channels

7.1 channels
PCI Express x16 (Gen 5.x) slots

1
PCI Express x16 (Gen 4.x) slots

1
Supported storage drive types

HDD & SSD
S/PDIF out port

Yes
HDCP

Yes
Digital audio optical out

1
VGA (D-Sub) ports quantity

0
Maximum resolution

7680 x 4320 pixels
DVI-D ports quantity

0
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Parallel processing technology support

Crossfire
Model Chipset

X870
Gaming

Nu
Format

ATX
Soclu Procesor

Socket AM5
Tip Memorie

DDR5
Numar sloturi memorie

4
Memorie maxima

256 GB
Tip slot interfata grafica

PCIe 5.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
Bluetooth

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

4
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Motherboard chipset family

AMD
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Supported memory types

DDR5-SDRAM
Maximum internal memory

256 GB
ECC сompatibility

ECC & Non-ECC
Number of HDDs supported

4
Number of storage drives supported

7
Number of CPU fan connectors

2
Number of chassis fan connectors

4
Number of EPS power connectors (8-pin)

2
RGB LED pin header

Yes
Ethernet interface type

2.5 Gigabit Ethernet
Motherboard form factor

ATX
Number of M.2 (M) slots

3
1st M.2 highest PCI Express generation

5.0
2nd M.2 highest PCI Express generation

4.0
USB 3.2 Gen 2x2 connectors

1
RAID levels

0, 1, 10
Processor socket

Socket AM5
Supported memory clock speed (max)

8000 MHz
Number of M.2 (E) slots

1
Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
LAN controller

Dragon RTL8125BG
1st M.2 largest key size

2280
2nd M.2 largest key size

2280
3rd M.2 largest key size

2280
USB4 Gen 2x2 ports quantity

2
Motherboard chipset

AMD X870
Audio Chip

Realtek ALC1220
USB 2.0 ports quantity

6
Number of water pump connectors

1
3rd M.2 highest PCI Express generation

3.0
Number of RGB LED pin headers

5
Supported storage drive interfaces

PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III
Number of temperature sensor headers

1
MB-Format

ATX
PCI-Ex1

0
RAM-Slots

4
MB-Socket

AM5
PCI-Ex16

2
Microphone in

Yes
Headphone outputs

1
Product colour

White
Power source type

ATX
Width

30.5 mm
Certification

FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Depth

24.4 mm
Producator

ASROCK
Garantie

36
